Low Cement Alumina Castable 85% Al2O3 P-CAST-A85L
Low Cement Alumina Castable 85% Al2O3 P-CAST-A85L is a low cement castable based on bauxite with 84 – 86% Al2O3, suitable for service temperatures up to 1700 °C. It has a hydraulic bond and is installed by casting with vibration.
- Product family
- Castables & Ramming Mixes
- Last updated
Product overview & application
About Low Cement Alumina Castable 85% Al2O3 P-CAST-A85L
Low Cement Alumina Castable 85% Al2O3 P-CAST-A85L is a low cement castable based on bauxite with 84 – 86% Al2O3, suitable for service temperatures up to 1700 °C. It has a hydraulic bond and is installed by casting with vibration. Material type according to the datasheet: Dense refractory concrete; raw material basis: bauxite.
Low cement castables contain less cement and therefore need less mixing water, which gives a higher density, lower porosity and higher strength than conventional castables of the same family.
Technical properties
- Maximum service temperature: 1700 °C
- Al2O3: 84 – 86%
- Bulk density: Approx. 2.7 g/cm³
- Grain size: 0 – 8 mm
- Cold crushing strength after drying at 110 °C: 450 – 550 kg/cm²
Installation, packaging and storage

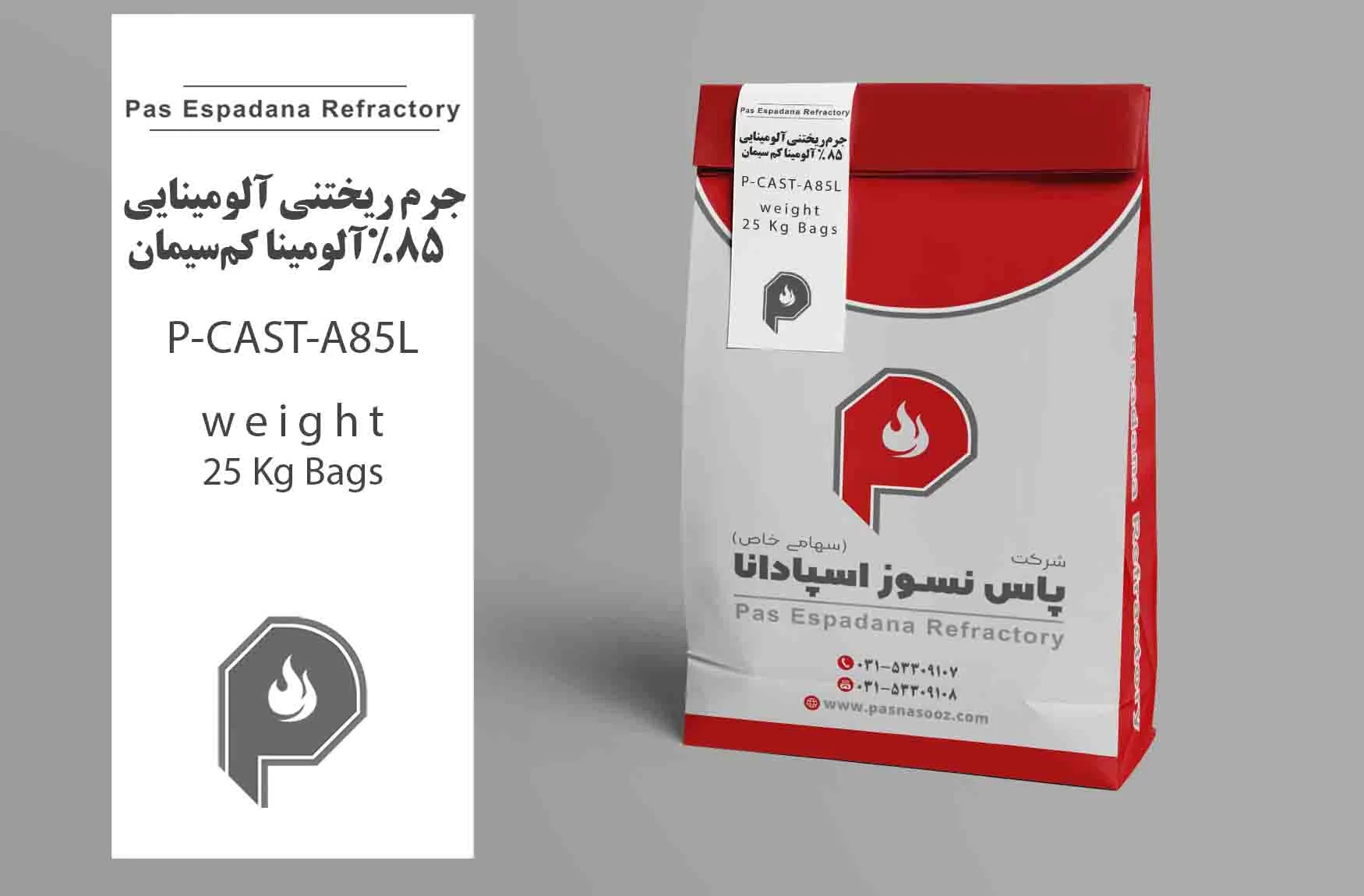

Installation: casting with vibration. Water addition, drying and initial heat-up should follow the manufacturer's instructions to achieve the best properties. Packaging: 25 kg bags (dry mix, water is added on site). Shelf life: 6 months (dry, cool, frost-free place).
The values in the specification table are taken from the product datasheet. Contact the Pas Espadana technical team to select the right grade for your operating conditions.
Applications
- Industrial furnaces, burners and stacks with medium to high service temperatures
- Refractory repairs and linings in the steel, cement and petrochemical industries
Information needed for review
- Service temperature and type of equipment
- Installation method and lining thickness
- Chemical and mechanical conditions (slag, alkalis, abrasion)
- Required quantity and delivery time
Technical specifications
| Maximum service temperature | 1700°C |
|---|---|
| Bulk density | Approx. 2.7g/cm³ |
| Grain size | 0 – 8mm |
| Cold crushing strength (110 °C) | 450 – 550kg/cm² |
| Al2O3 | 84 – 86% |
| MgO | Max. 0.5% |
| CaO | 1 – 2.5% |
| Fe2O3 | Max. 1.5% |
| TiO2 | Max. 3% |
| SiO2 | 8 – 11% |
| Installation | Casting with vibration |
